Inside Q-LAB: test stations, X-ray and decapsulation
Independent testing laboratory · Oberhaching near Munich

Quality assurance starts before goods receipt.

Why Q-LAB

A component reveals its inner workings before it reaches your production.

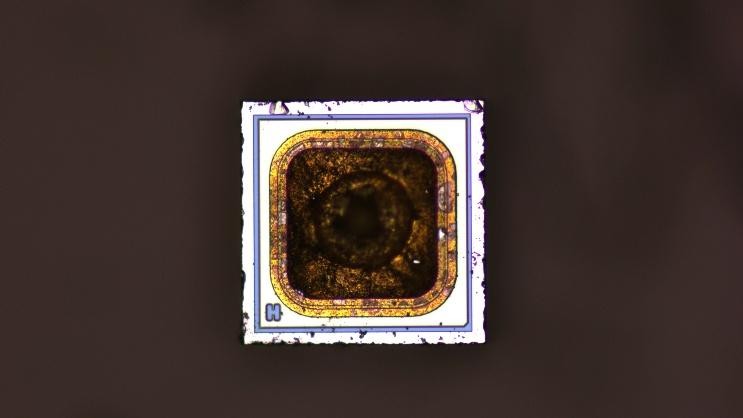

Decapsulated components with exposed die under the microscope

Q-LAB tests electronic components for customers in the automotive, aerospace and medical technology sectors. In these industries, a small quality defect can have serious consequences.

X-ray imaging and decapsulation show what a standard incoming inspection cannot see. This includes the chip maker’s logo on the die.

Request testing
  • Quality managementDIN EN ISO 9001:2015DIN EN ISO/IEC 17025
  • Built witha leading research institute
  • IndustriesAutomotive · Aerospace · Medical technology and more

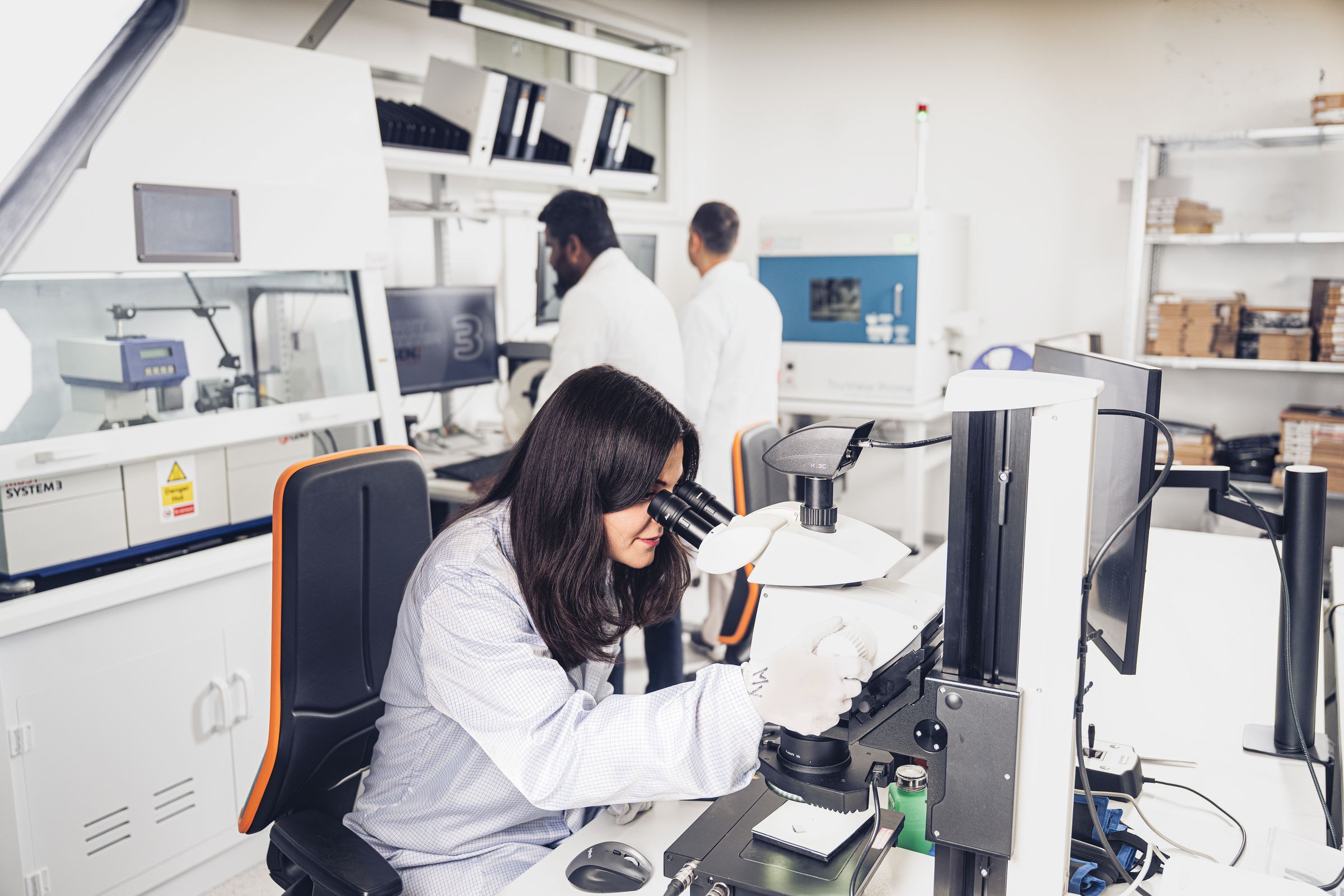

Visual inspection at the microscope in Q-LAB
The lab at a glance

Six answers before you entrust us with your components

Three services, matched to your requirements

As a test laboratory, we sit in the supply chain before goods reach your production.

If a fault occurs, we also support you with analysis at component and assembly level. We share our know-how in training courses and work with customers and institutes on research projects.

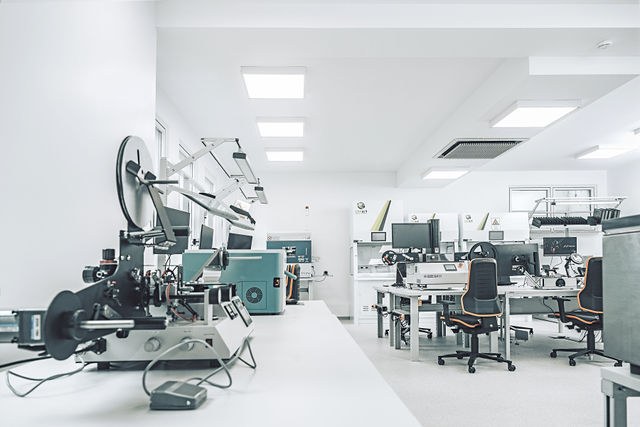

Test stations at Q-LAB
01

Component testing

Every batch is tested to a defined scope and documented per lot. Testing follows industry standards, your specifications or our recommendation.

02

Failure analysis

We apply our test equipment and expertise to find the root cause of faults in components or assemblies.

03

Training, research and development

Quality assurance training and joint projects with customers, universities and institutes.

Storage and preservation strategies for every component

Components change in storage, too. If you keep them for years, you need a plan.

We set a storage and preservation strategy for each component. We take into account the component, its packaging, its moisture sensitivity level (MSL), the storage period you need and the application. This secures critical stock, last-time buys and discontinued parts for your production.

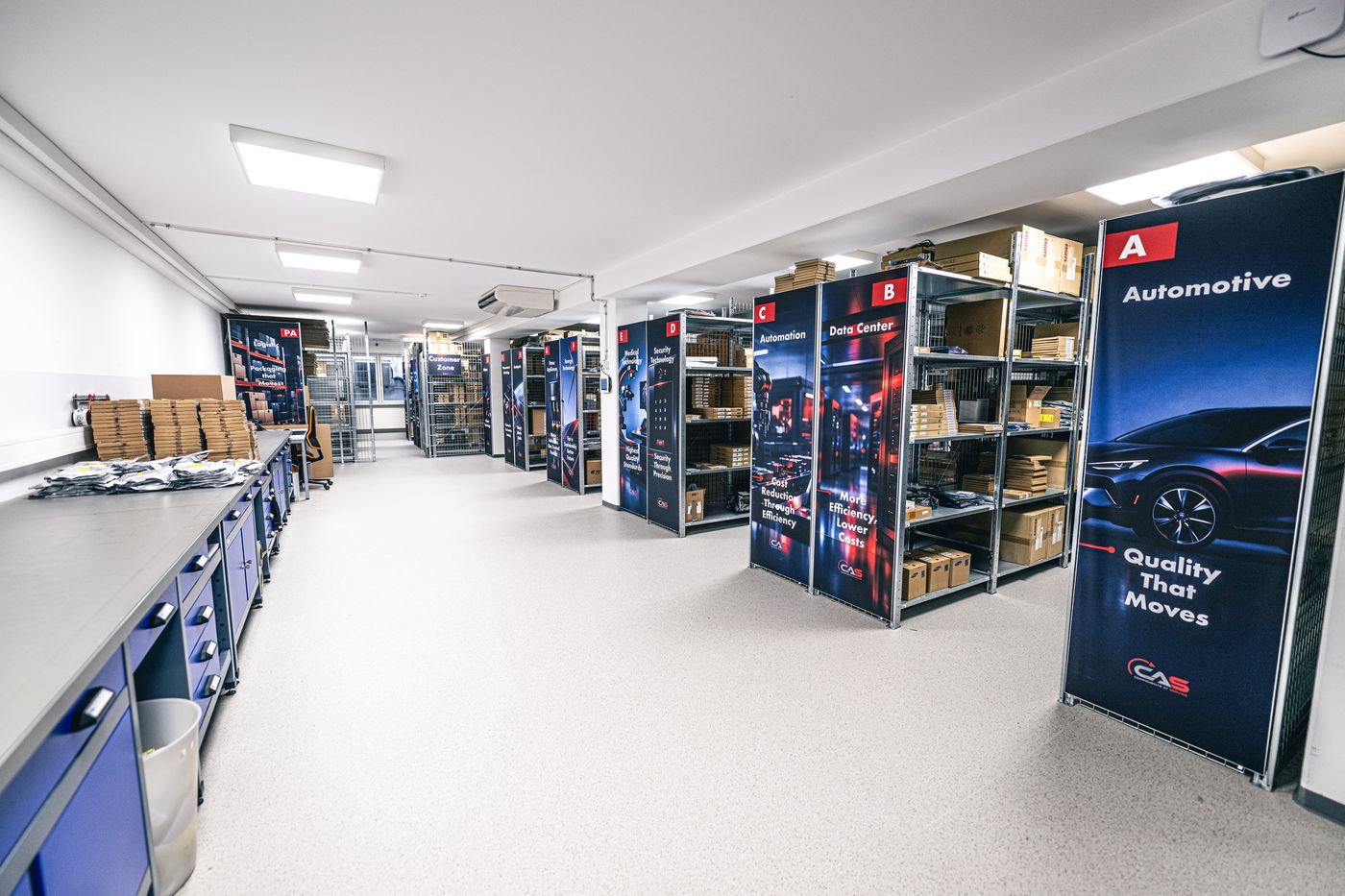

Long-term storage for electronic components
01

Q-LAB Long-Term Storage

Controlled storage, monitoring, ESD protection, traceability

02

Q-LAB LTS Preservation

Drying, repackaging, testing before storage

03

Q-LAB LTS Quality Assurance

Regular inspection, solderability test, electrical tests and a documented condition assessment

Test scope matched to your requirements

Based on years of experience, we suggest the tests that fit your task. We also follow your own specifications. If you need testing to an industry standard, we meet it. We also run single tests, for example solderability checks on parts with older date codes.

If the tests show that deeper analysis is needed, we adjust the scope. Our partner network gives us access to many more test and analysis methods.

01ESD test: packagingCheck of the protective packaging and dissipative resistance.
02Labelling and packagingComparison of label, date code, batch and container.
03Visual inspectionOptical inspection under microscopes at up to 1000x magnification. Automated for larger quantities.
04Re-marking and surface testsSolvent test for subsequent printing.
05X-ray inspectionDie size, bond wires and position within the package.
06XRF material analysisAlloys and plating, compliance with the RoHS standard.
07DecapsulationChemical or thermal, with comparison of die markings.
08Solderability testWetting test using an established test method.
09Electrical testsElectrical parameters, characteristic curves and functional tests.
10Cross-section preparationPreparation and analysis of cross-sections of components and printed circuit boards.

Top equipment, fully listed

We keep adding equipment to expand our test options and stay current with the state of the art.

A selection of our key equipment. The park grows continuously.

Leica M205CMicroscope
Tektronix 2600-PCT-2BSource measure unit
Tektronix DMM6500Digital multimeter
Sourcetronic ST289CLCR meter
TruView Prime RX-ray system
SG-RI01In-tape inspection system
Spectro Cube DX-ray fluorescence analyser
W-TECHT&R system
Abi SentryCounterfeit IC detector
HT-EUREPT&R rework station
JetEtch ProChemical decapsulation
Elnec BeeProg2CProgramming device
LAC LZ03/12Thermal decapsulation
G&G JJ100BPrecision balance
MUST System 3Solderability tester
Super Dry XSDB 1412-55Drying cabinet
Tektronix TBS 1154Digital oscilloscope
Keysight 33120Function generator
Presi Minitech 300Polishing machine
Presi Flexicut 3Precision cutting machine

A report that stands up to a complaint

Every batch comes with a detailed test report. It documents the quality checks and all tests performed.

A second person checks every report before it leaves Q-LAB (four-eyes principle).

Our reports are written to be easy to read. If something is unclear, we will walk you through it. Whether you work in purchasing, quality assurance or development, we speak your language.

Download sample reports

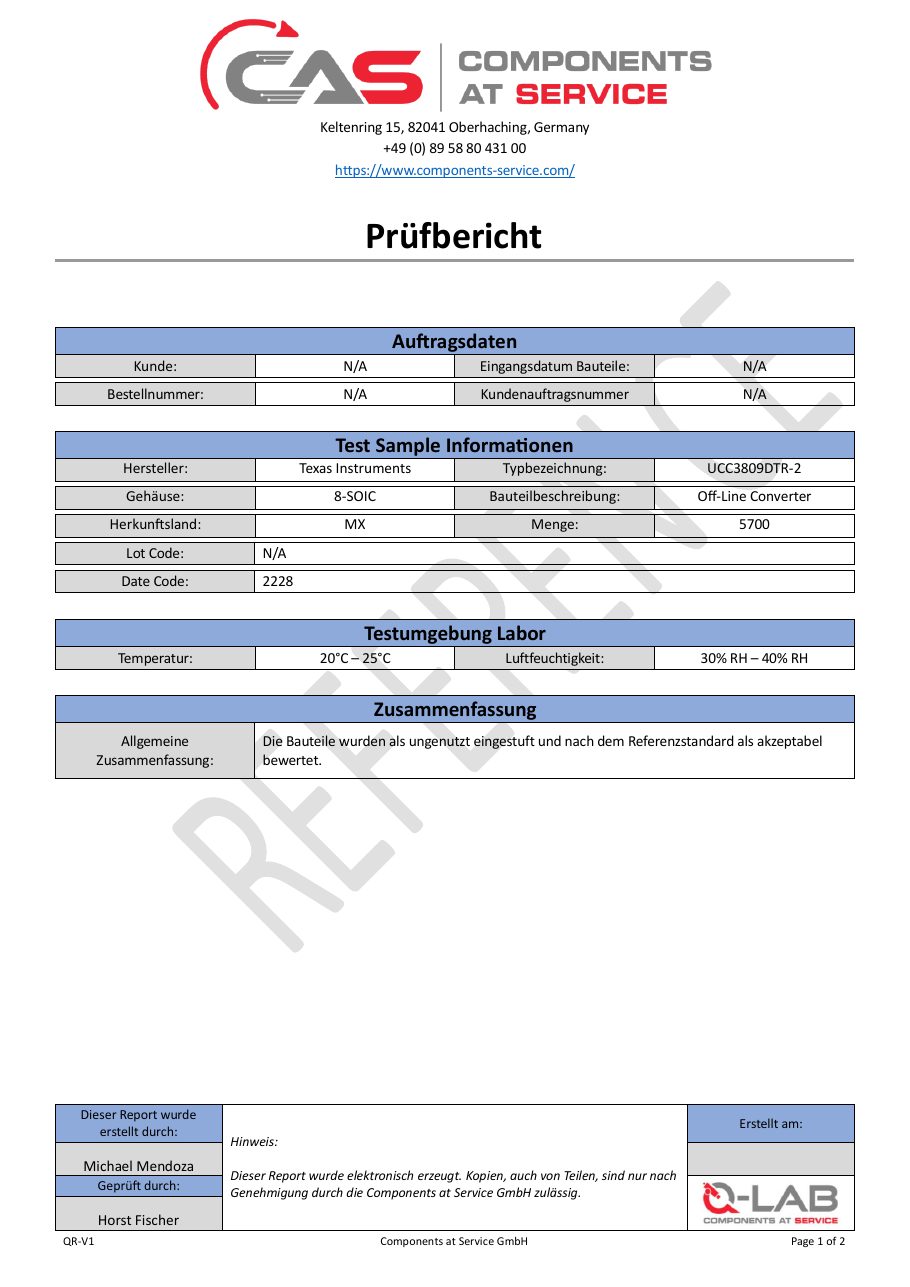

Test report, cover page
Cover pageLOT number, component, test scope, reference data

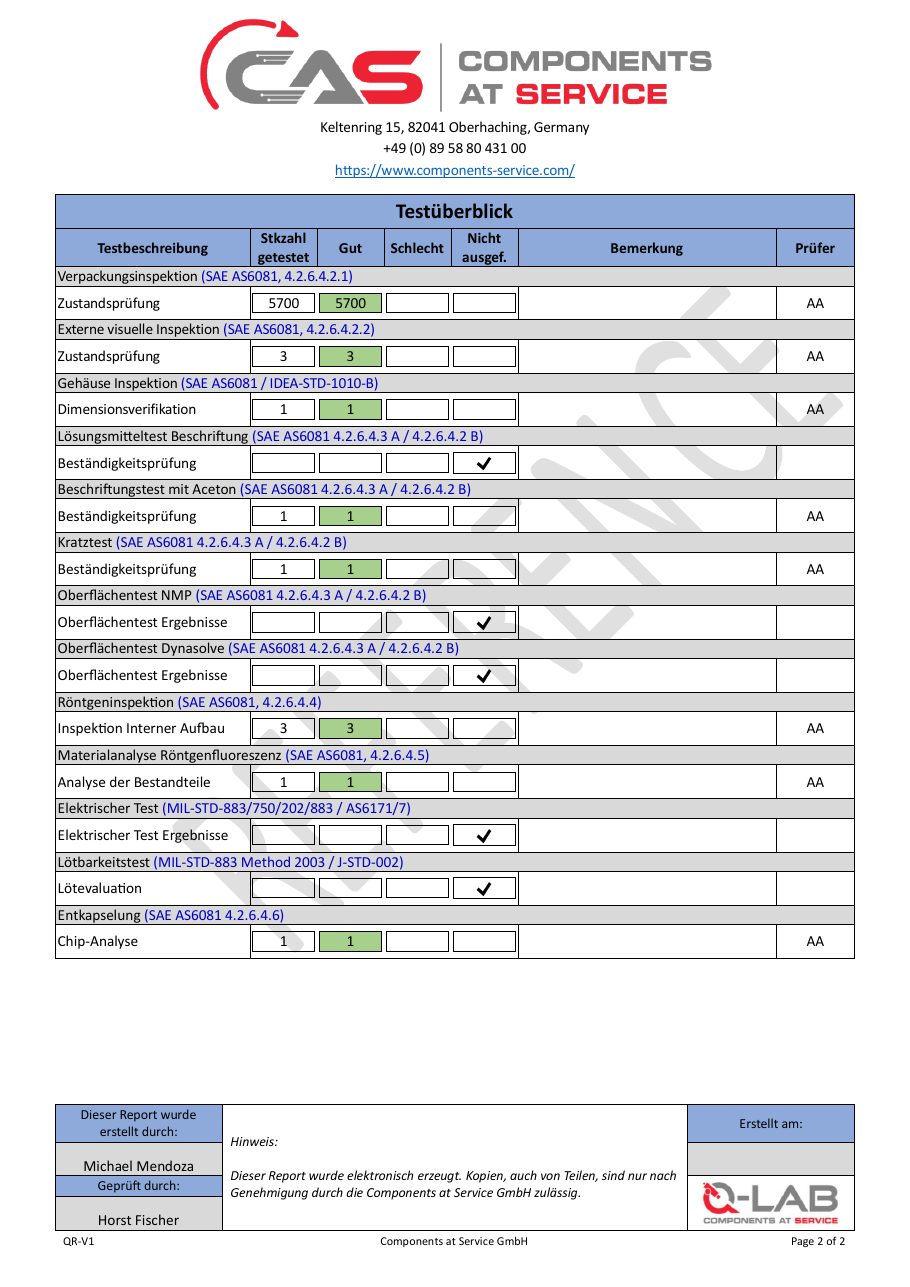

Test report, results
ResultsMeasured values and limits for each step

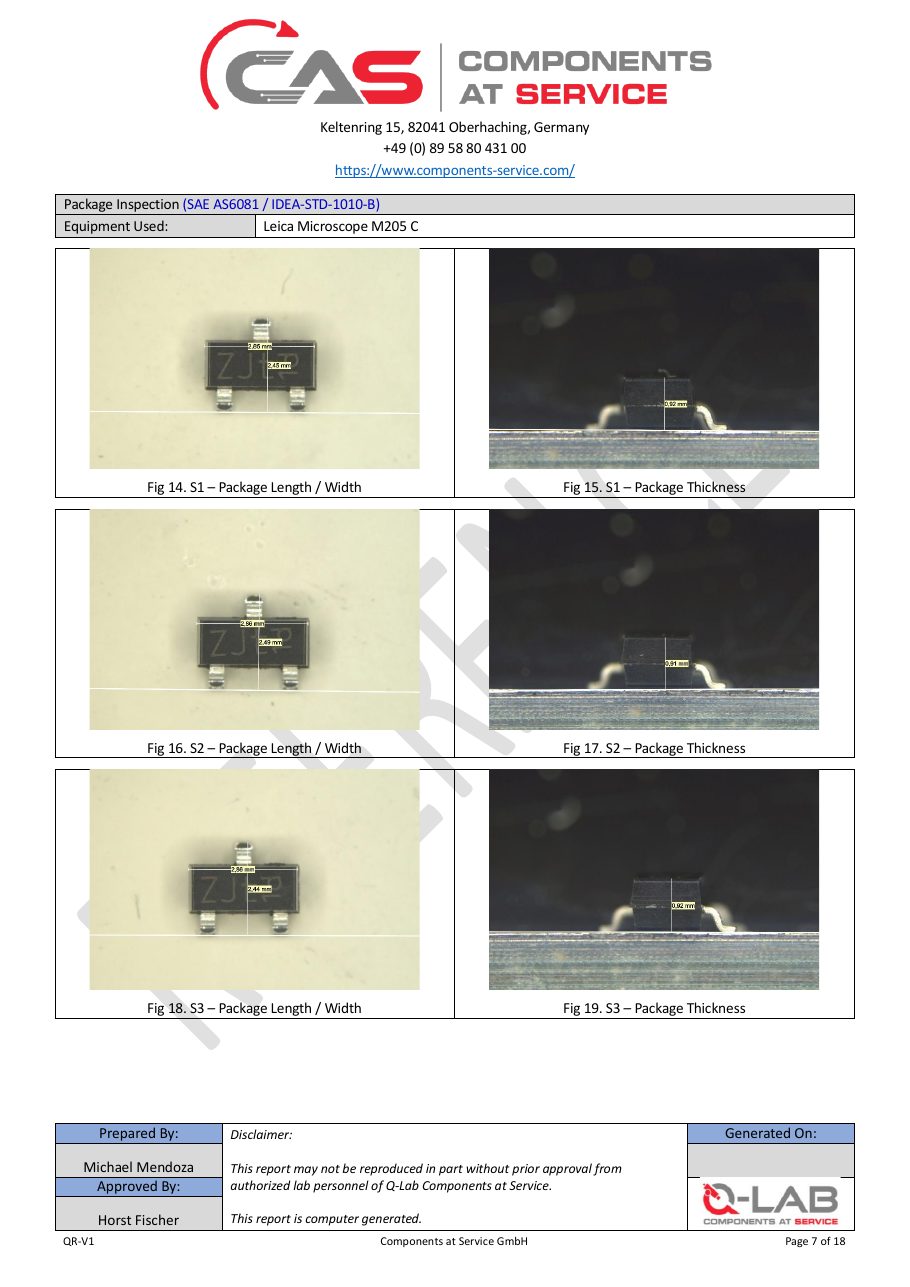

Test report, images
ImagesX-ray and microscope images side by side

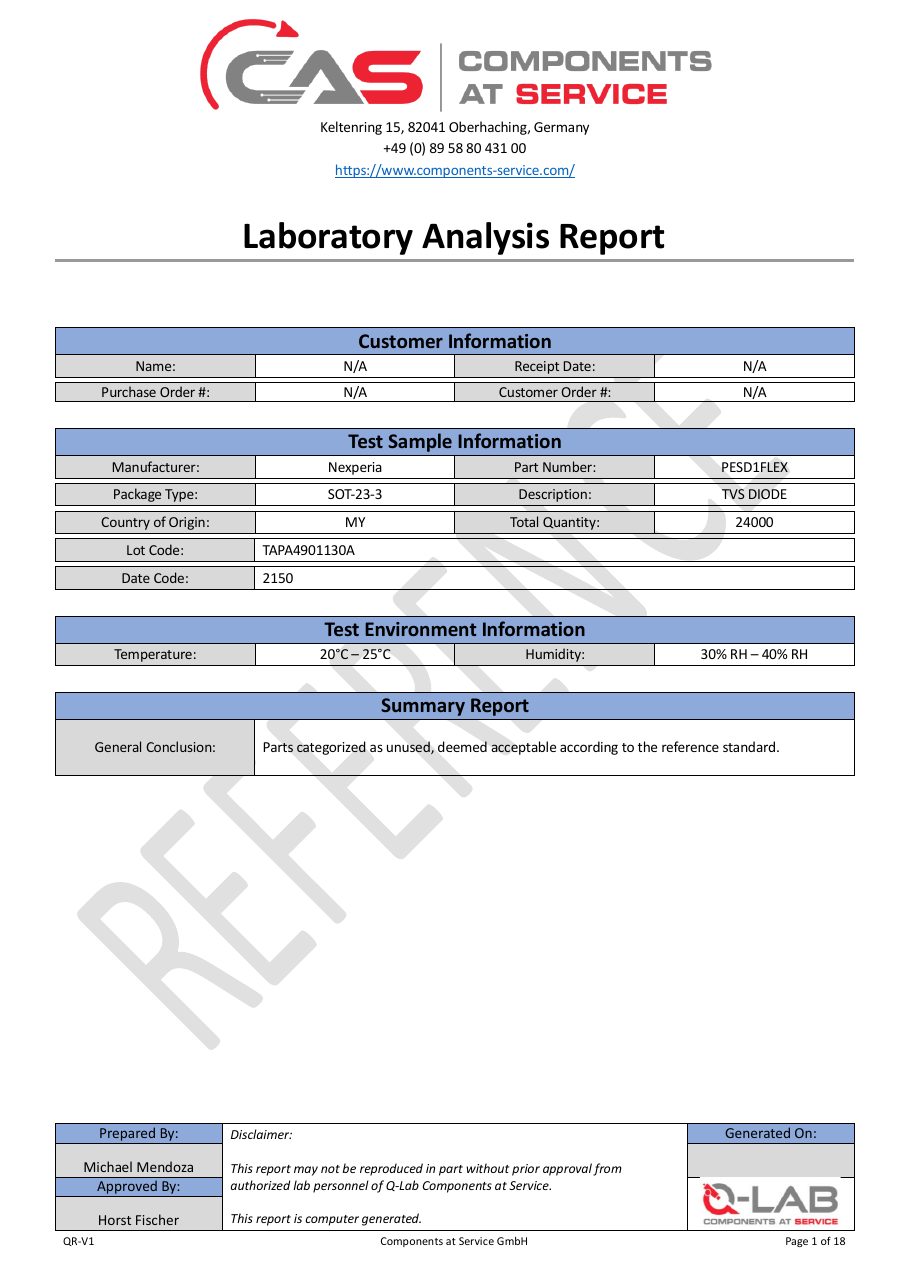

Test report, assessment
AssessmentTest result, dated and signed

A laboratory built for industries where errors are not an option

At Q-LAB, we test electronic and electromechanical components. The laboratory was set up in partnership with a renowned research institute.

We built the lab so that components can be tested independently of external test laboratories, with the know-how kept in-house. We see it as our responsibility to protect customers and partners from quality defects and counterfeits.

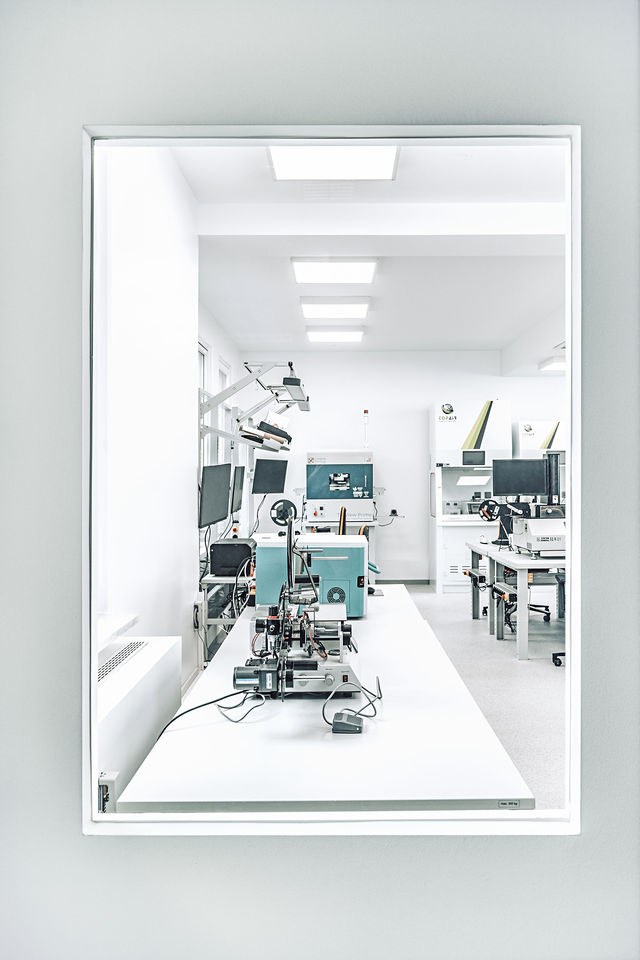

Test station at Q-LAB

With Q-LAB, you get:

  • The highest standards in quality assurance
  • Research and development projects with customers, universities and leading institutes
  • Training in quality assurance

Our promise: We test strictly to the applicable standards and to the demands of the automotive and medical technology industries.

Q-LAB in figures

In-house. No shared capacity, no outsourcing.

At Q-LAB, we test electronic and electromechanical components. The lab is in Oberhaching, near Munich.

All Q-LAB staff hold a university degree in a technical discipline.

200m²laboratory space
more than20measuring and analysis instruments
48huntil you receive a response with test scope, effort and schedule
Processes and standards

Governed by standards, not by feel

Our processes follow DIN EN ISO 9001:2015. They form the basis for continuous improvement. Where accreditation is required, we work with independent accredited test laboratories and research institutes.

Certificates and memberships

ISO9001CERTIFIED01

DIN EN ISO 9001

Quality management, 2015 edition

ISO14001CERTIFIED02

DIN EN ISO 14001

Environmental management, 2015 edition

03

ESD protection

According to DIN EN 61340

RoHSREACHCOMPLIANT04

RoHS, REACH

Material compliance, supported by XRF analysis

05

DIN EN ISO/IEC 17025

Accreditation process started

FAQ

Frequently asked questions

Not sure what you need? Tell us the component, the quantity and the reason.

Request testing
What information do you need for an enquiry?

The manufacturer’s part number and article number, the quantity, the packaging type and the reason for testing. If you have your own test specification, send it with the enquiry, and we will follow it.

What happens after the enquiry?

We reply within 48 hours with test scope, effort and schedule.

Is it necessary to order all test steps?

No. You choose the test steps that suit your task. On request, we recommend a test scope.

How can a counterfeit be identified?

Because of the wide variety of components and manufacturing processes, there is no single answer. Simple counterfeits often show unstable markings. Professional counterfeits can only be identified by opening the component. To learn more, attend one of our training workshops. By arrangement, we can also run them as in-house training at your site.

Can I see a sample report in advance?

You can download sample reports via the form . We are also happy to show and explain the sample reports in a 30-minute meeting.

Is Q-LAB accredited?

We have started the accreditation process for DIN EN ISO/IEC 17025. We expect to receive accreditation by the end of 2026.
